Innovative automation and drive solutions for plant optimisation
For new installations or retrofits in existing systems, Tahila Engineering offers not only the right automation equipment for integration in building management and process control systems, but also the software required for pump commissioning.
Automation products from Tahila Engineering are suitable for:

Integration in process control systems
Retrofitting existing installations

Tahila Engineering offers a comprehensive and flexible product range.
The uniform product design simplifies:

Handling
Interchange ability
Spare parts management

Besides digital and analogue outputs (0/24V, 4-20mA, etc.), the control units mounted on the pump motor or in the vicinity of the pump offer interface modules for all common bus systems.

LON-Bus (Local Operating Network)

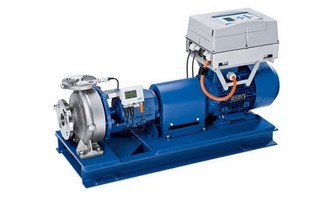

Integrated interface for connection via motor-mounted Pump Drive variable speed system without external gateway module (optional).

Profibus (Process Field Bus)

Integrated interface with Pump Drive without external gateway module.

BACnetIP (Building Automation and Control Networks)

Communication via pump Drive or level control unit Level Control (on request).

Modbus RTU/RS485

Integrated interface with Level Control (optional) or communication via pump Drive (on request).

EtherNet

Communication via customer-specific pump control units, e.g. Hyamaster (on request).

Bus connection parameters
The main parameters are:

Start/Stop
Set point and feedback of actual value of controlled variable
Operation and general fault message

Further parameters are available for read-only or write/read access. Their nature and extent depend on:

Type of control unit
Bus system used
Customer requirements

Benefits of pump integration in building management and process control systems

Easy monitoring of pumps and integrated system components
Potentials for optimising energy efficiency and availability can be accessed
