Industrial and hazardous areas junction box

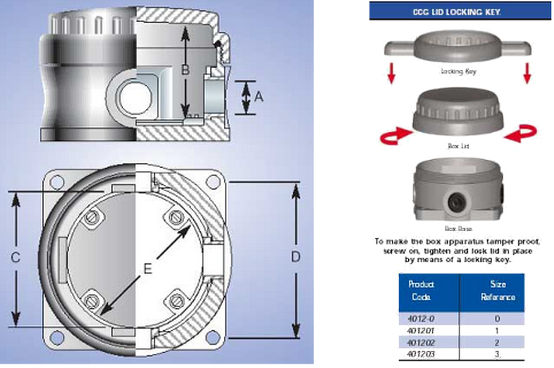

CCG 4 Way Box IP68
Features and Benefits
CCG 4 Way Box IP68
Features and Benefits
- For use in surface hazardous areas and general industrial electrical installations.
- Manufactured from impact, corrosion and UV resistant glass reinforced polyester compound.
- High temperature resistance and anti-
static properties (black boxes only). - Red Fire Rated box for emergency circuits (Rated 750ÂșC for 30 min.)
- Screw-
on lid allows ease of installation locked with a special key prevents unauthorised tampering. - No exposed metal parts.
- One box gives 1, 2, 3 and 4 way versatility (reduced stock holding).
- 4 blanking plugs provided.
- No drilling or tapping of entries required.

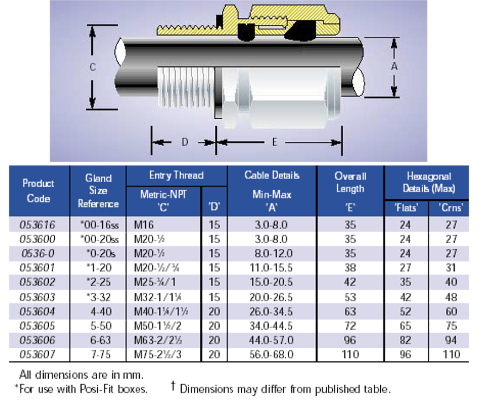

A2EX EExde IIC compression gland for unarmoured cable
Features and Benefits:
- For indoor/outdoor use and hazardous areas. (A2E Type)
- Fitted with two specially formulated elastomeric seals. Inner seal seals on the cable sheath. Harder outer seal grips the cable, giving superior cable retention and IP rating
- Manufactured from high quality brass and nickel plated.
- Supplied with a polypropylene sealing gasket. 3.5
